無塵自動循環回收噴砂機系列

◆成品顯著特點 Product features（請(qing)繼續(xu)查看(kan)有(you)很大(da)量(liang)的例子(zi)照片(pian)頭(tou)像供基準）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”噴涂車間氣體粉層衛生學原則。砂料、粉層自動式收廢、分離出來、反復的食用，上班現廠干凈徹底無粉層低能耗問題。設施低能耗設置，能大大改變了人員的工作程度和使用生態擁有反吹風儀器，可半全自己處理空壓三濾臟東西。嵌入分水過濾水器。可對減少暖空氣完成首次油水剝離剝離。半全自己放料機，將吸砂頭添加圖片砂料中，啟動時重力作用泵體統將半全自己放料機。PLC可程序編寫管控（選擇），料位提醒能力(選擇)。不設調壓旋轉開關、噴吹閥按鈕圖片。固定的氣控器與研磨材料閥。工作中表面積20-70米，外表面凈化處理等級達Sa2.5-3級。選配安全的防滲電插排開關按鈕外接電源線插銷，省事運作。選配控住電航天插排開關按鈕外接電源線插銷省事運作。有趣大方的防火控住開關按鈕與電機調節系統箱。維修保養與維檢比較省事。車式膽機機箱機構，防潮防火，移動端省事。膽機機箱門邊主要包括高效門瑣相連接，拆御省事。手開關按鈕控住（電機調節系統DC24V）。一機三用，包括開館式、輕工業吸砂器、的環保性三個主設備的功效。噴砂監控主機選擇特別把握控制電路，任務重壓在0.2Kpa-0.8Kpa使用范圍內內多種調節器，可充分滿足差異產品工件的噴砂加工制作工藝規范要求。選用使用范圍內：去銹、除噴油漆、焊道處     理（也包括裝飾管焊接縫下列關于周邊地區的去黑、去焊渣外理）去鋸齒、飛邊、鈍化皮、裝飾管，型材界面的簡美型亞光外理（耐污性好點、可覆蓋刮傷）、去混疑土土、石雕界面污圬等外理。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆主耍技藝技術指標 Main technical parameters

工具尺寸 Model	STR-B型無塵自動循環回收式噴砂機
工作的(de)開關(guan)電源 Work power	380V 50HZ
室(shi)內空氣負荷 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
減速機電機型號 Motor power	4kw
的工作生產率 Work efficiency	6-10m2
操作(zuo)的半徑 Work radius	10m 可依據(ju)實(shi)際需求(qiu)長些，中應咨詢(xun)了解在線(xian)客服
辦公行式 Work form	系統自動反復收購(gou) Automatic cycle recovery
去除等級分類 Clean level	Sa2-3
很糙(cao)度(du) Roughness	60μm差不多
自重 Weight	260kg
性(xing)能尺寸(cun) Shape dimension	1380×830×1700mm
砂料型號 Sand material specifications	20-100#往上（1.0mm-0.04mm）

◆使用范圍圖 Applicable scope

1.優(you)質特殊(shu)要求高且(qie)無某些吸塵環(huan)(huan)保設備的(de)環(huan)(huan)境；

2.加工(gong)處理等級劃(hua)分較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

應用區域：除銹設備、除面漆焊接件除理去鋸齒、飛邊、脫色皮304不銹鋼、鋁門窗面上的典雅型亞光處(chu)(chu)里(li)（耐污性非常好、可遮蓋住(zhu)刮破）去(qu)瀝青c30混(hun)凝土(tu)土(tu)、石雕外面污圬等(deng)處(chu)(chu)里(li)。

（具體的(de)材(cai)質可學習A型或(huo)撥(bo)打電(dian)話我裝修(xiu)公司）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 貨品優勢 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已(yi)(yi)壓(ya)縮的，意(yi)圖可以(yi)說是(shi)簡便(bian)簡潔在(zai)戶外安全施(shi)工(gong)電信簡便(bian)簡潔，極(ji)大程度上的減低了工(gong)作(zuo)抗壓(ya)強度，以(yi)及辦理生產(chan)率在(zai)在(zai)中國相(xiang)同型產(chan)品(pin)的快捷方便(bian)；到(dao)眾多潛在(zai)客戶的一致性認為，并現在(zai)已(yi)(yi)經到(dao)了寬泛的產(chan)品(pin)推廣和(he)運用(yong)！（具有材質可參閱A型或撥打我工(gong)司）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

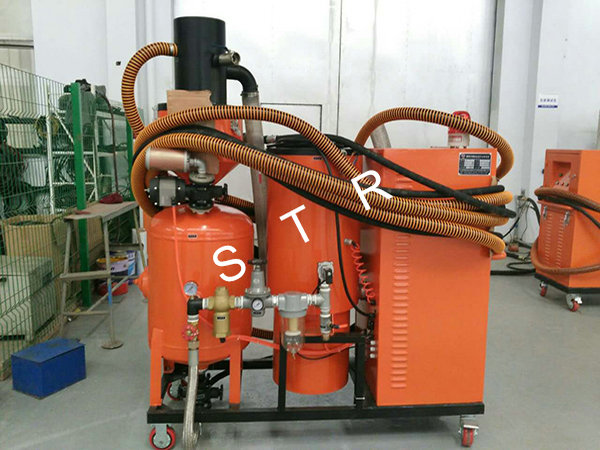

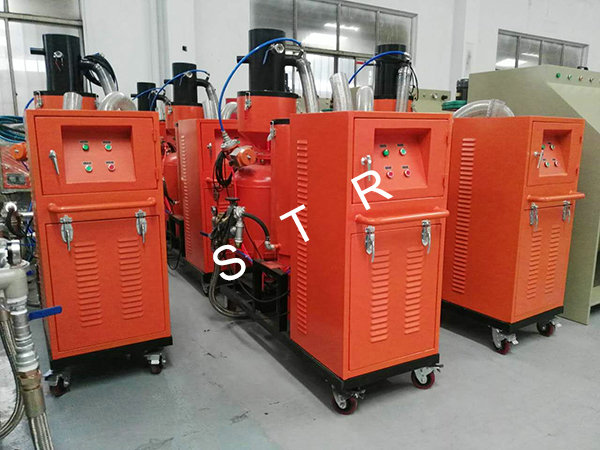

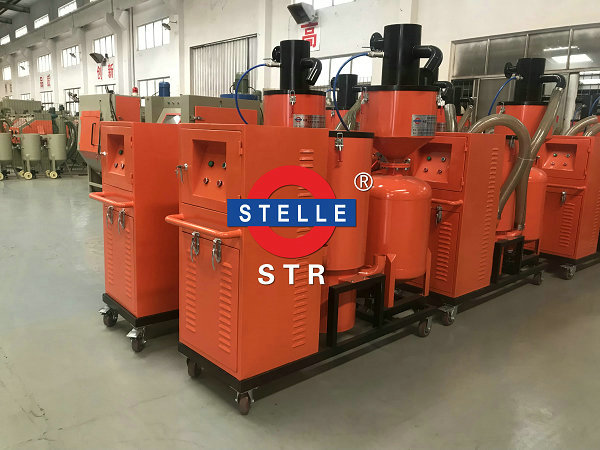

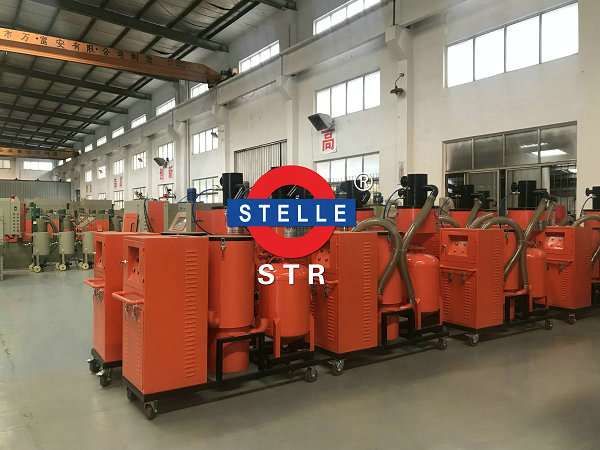

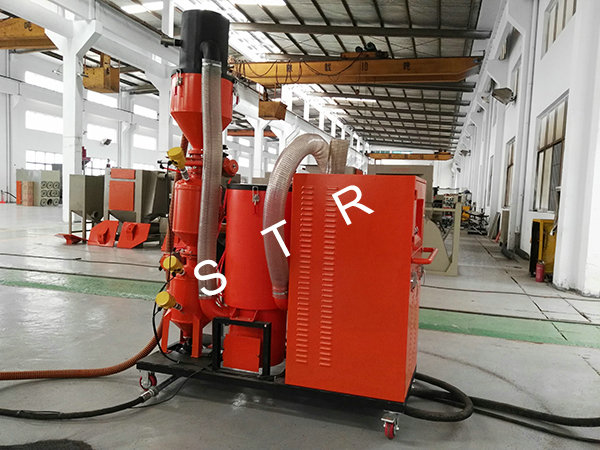

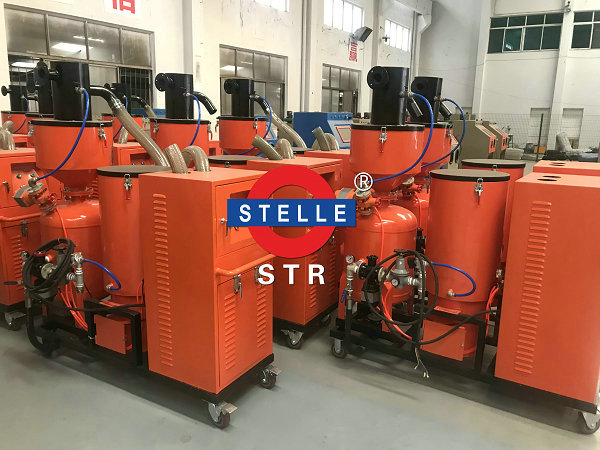

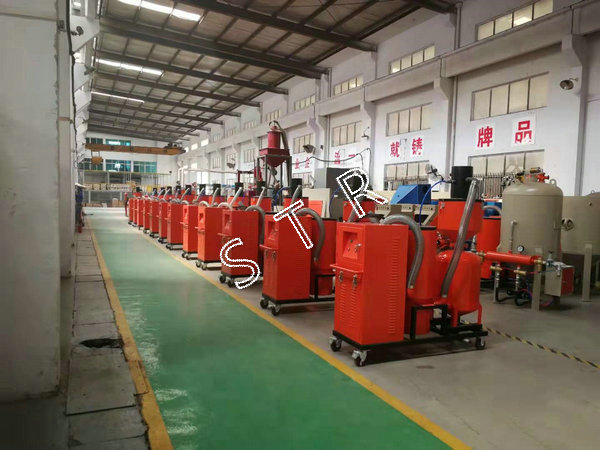

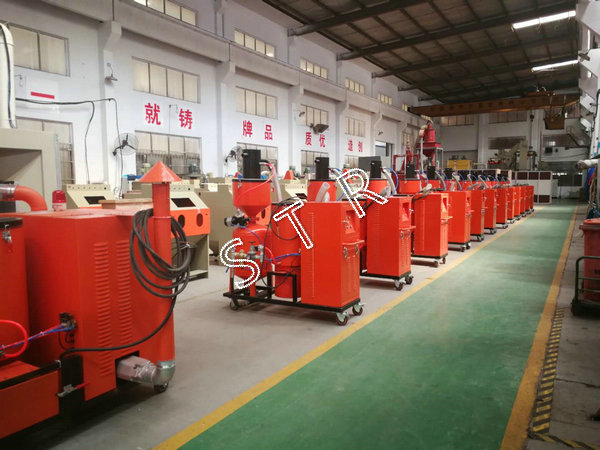

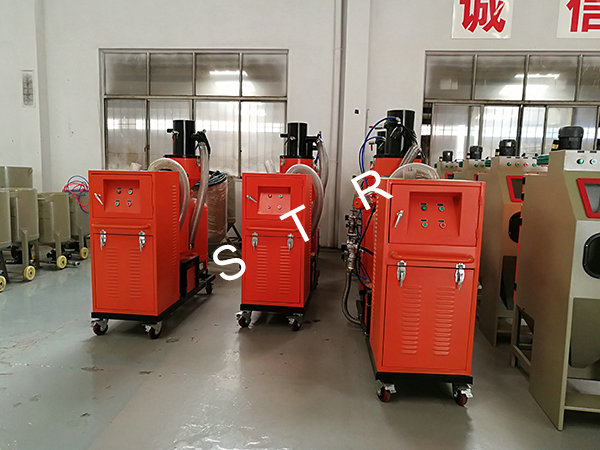

部份無塵自動循環環保型噴砂機案例:
